Flexible Y Connector MC4-Evo 2 (PV-K/SPL-Y)
Art.No.: 4004ffm
No ratings.
Manufacturer:
Ready for shipping

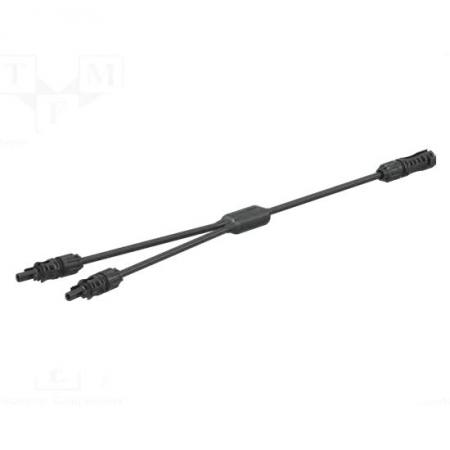

Flexible Y Connector MC4-Evo 2 (PV-K/SPL-Y)
The flexible MC4-Evo 2 Y connector is certified by TÜV Rheinland and ensures stable, durable connections within DC PV strings.
Minimal power loss, low heat generation, robust housing, IP68 protection rating, 6 mm² cable cross-section.
| Technical Data | |
|---|---|
| Connection system | MC4-Evo 2 |
| Rated voltage | DC 1 500 V |
| Test voltage | 8 kV |
| Protection class | II |
| Overvoltage category Pollution degree |
CATIII/3 |
| Connectors (only Stäubli brand connectors must be used) |
MC4 inline connector and socket MC4-Evo 2 inline connector and socket |
| Ambient temperature range | -40 °C to +85 °C |
| Transport/storage temperature range | -30 °C to +60 °C |
| Relative humidity for transport/storage | < 70 % |
| Protection rating (IP), connected/disconnected |
IP65 / IP68 IP2X |
| Insulating material | PA, EVA, XLPE |
| Contact material | Copper, tin-plated |
| Maximum contact resistance of connector | < 0.5 mΩ |
| TÜV Rheinland certification according to 2PfG 1913 | R 60164319 |
| Reference | Type | Connection system | Input | Output |
|---|---|---|---|---|
| 32.0333 | PV-K/SPL-Y-8-15/15-15EPP/ES-0050 | MC4-Evo 2 | Pin (2x) | Socket (1x) |
| 32.0334 | PV-K/SPL-Y-8-15/15-15ESS/EP-0050 | MC4-Evo 2 | Socket (2x) | Pin (1x) |
